Transmission Tunnel Heat Shield, Removing And Installing: Removing

--TFSI Vehicles:  remove the front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING [CVKB, CWNA, CVLA, DEMA, DKUA] .

-- TDI Vehicles:  remove the front exhaust pipe. Refer to the appropriate service information.

-- Remove the driveshaft. Refer to the appropriate service information.

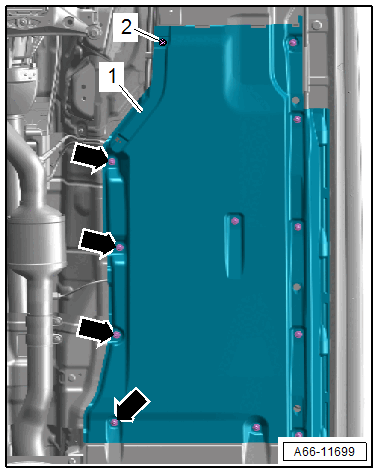

-- Remove the nuts -arrows- and bolt -2- for the underbody trim panel -1- in the heat shield area.

Courtesy of AUDI OF AMERICA, LLC

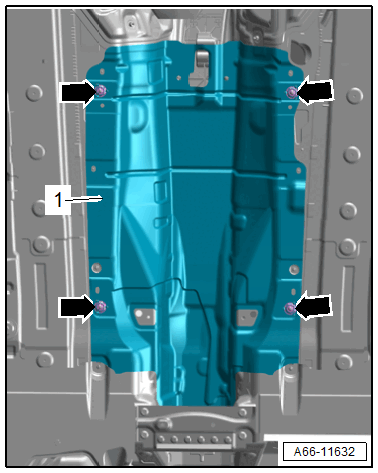

-- Remove the lock washers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the heat shield -1-.
