Hood Heat Shield, Removing And Installing: Removing

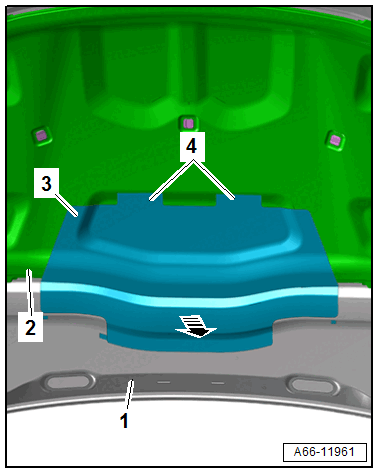

-- Carefully warm the heat shield -3- in the area of the bonding with the :VAS1978/14A  .

GWWA66-11961Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove the heat shield from the hood -1- -arrow- at pay attention that the paint coat is not damaged.

-- Remove the heat shield tab -4- from the insulation -2-.
