Sunroof Shade, Removing And Installing, A5: Removing

-- Remove the glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, A5 .

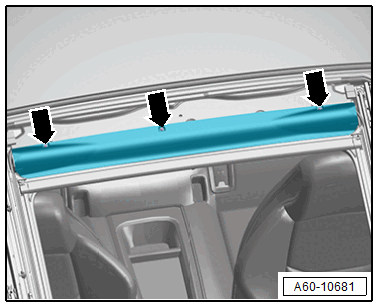

-- Unscrew the screws -arrows- at the cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

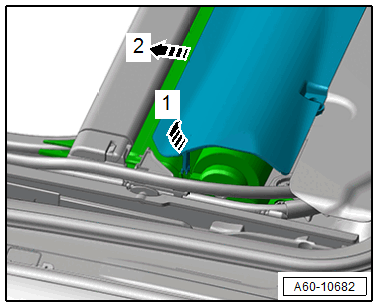

-- Disengage the right and left cover -arrow 1- and remove toward the front -arrow 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the sunroof shade slightly ² /₃ toward the rear.

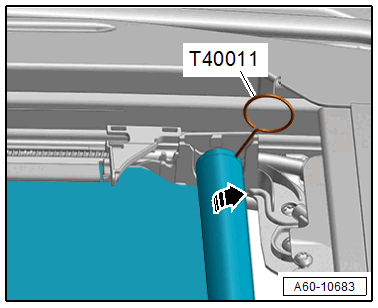

-- Turn the sunroof shade slightly toward the rear -arrow- until the sunroof shade can be locked using the :T40011  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

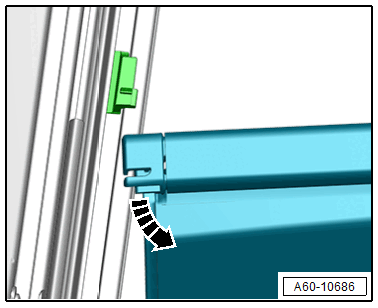

-- Disengage the sunroof shade from the mounting.

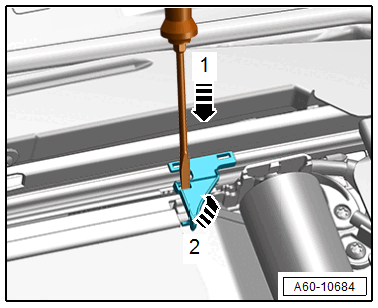

-- Release the guide using a screwdriver -arrow 1- and fold upward -arrow 2- at the same time disengage the sunroof shade guide strap from the guide.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

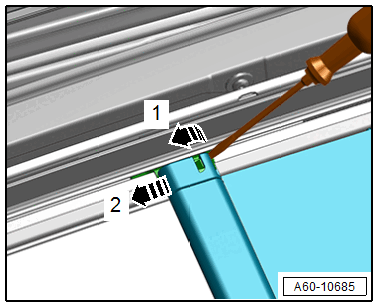

-- Unclip the gliding piece from the operating cable mount -arrow 1- and remove toward the front -arrow 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the gliding piece on the guide rail -arrow- and remove the sunroof shade.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
