Sunroof Shade, Removing And Installing, A4 Market-Specific Version: Removing

-- Move the sunroof shade all the way to the rear.

-- Remove the sunroof frame. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A4 AVANT .

-- Remove the rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR, A4 AVANT AND MARKET-SPECIFIC VERSION .

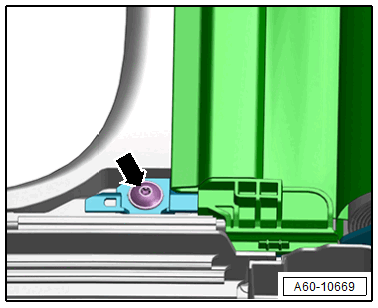

-- Remove the bolt -arrow- on the left and right.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

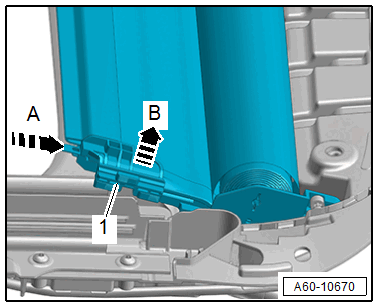

-- Push the left and right guide -1- toward the rear -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the guide upward together with the sunroof shade -arrow B-.

• The sunroof shade must be rolled up.
