Sunroof Shade, Removing And Installing, A4 Market-Specific Version: Installing

• The sunroof shade must be rolled up.

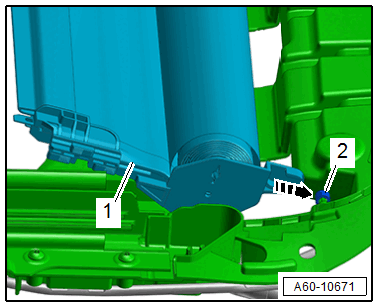

-- Insert the guide -1- at the left and right in the pin -2- on the sunroof frame -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

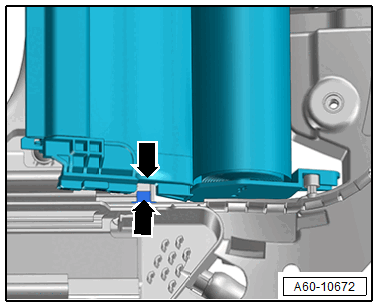

• The carrier at the left and right must engage on the sunroof frame in the cut-out on the guide -arrows-.

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

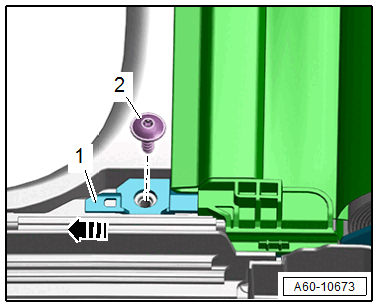

-- Push the left and right guide -1- toward the front -arrow- and engage.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt -2-.

Further installation is performed in reverse order of removal, while noting the following:

-- Perform an adaptation. Refer to SUNROOF SHADE MOTOR -V260-, ADAPTING .
