Sunroof Shade, Removing And Installing, A4 AVANT: Removing

-- Move the sunroof shade all the way to the rear.

-- Remove the sunroof frame. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, A4 AVANT .

-- Remove the rear glass panel. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR, A4 AVANT AND MARKET-SPECIFIC VERSION .

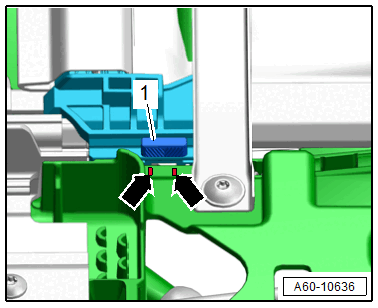

-- Using the shade emergency release, position the shade guide so that the gliding piece -1- is centered at both markings -arrows- on the sunroof frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left and right bolts -1 and 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cross bar -2-.

-- Slide the left and right guide -1- toward the rear -arrow- and remove the sunroof shade rail -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

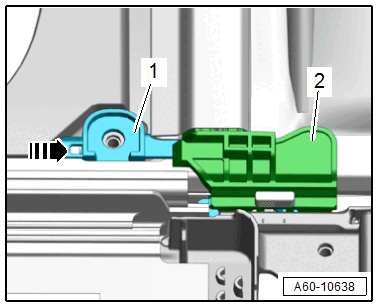

-- Remove the guide -1- from the sunroof shade rail -2- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

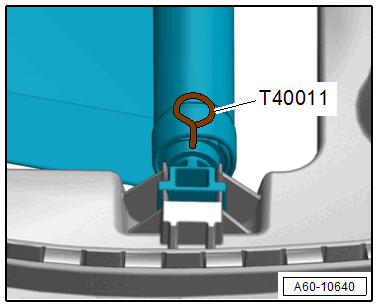

-- Insert the :T40011  into the left securing hole on the sunroof shade by turning the shade back and forth slightly, if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

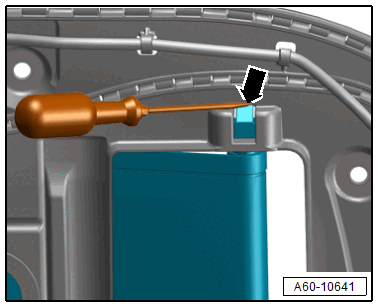

-- Release the tab -arrow- using a screwdriver and remove the shade.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
