Sunroof Shade, Removing And Installing, A4 AVANT: Installing
- The sunroof shade must be rolled up.

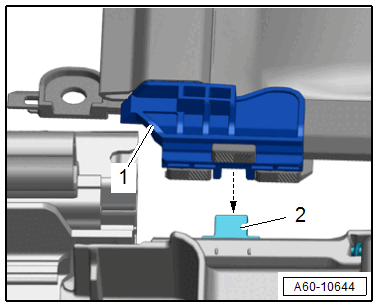

-- Insert the guide -1- into the rail end piece -2- for the sunroof shade.
- The cut-outs -arrows- on both components must lay over each other.
-- Check if the cable guide -1- for the sunroof shade cable is between the markings -arrows- on the sunroof frame.
-- Insert the sunroof shade with the guide into the sunroof frame.
- The guide -2- on the sunroof shade cable must engage in the cut-out on the end piece -1- for the rail -arrow-.

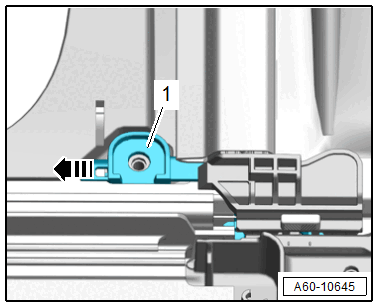

-- Slide the guide -1- forward -arrow-.
-- Check if all guide tabs -arrows- are engaged in their respective counterpart on the sunroof frame.

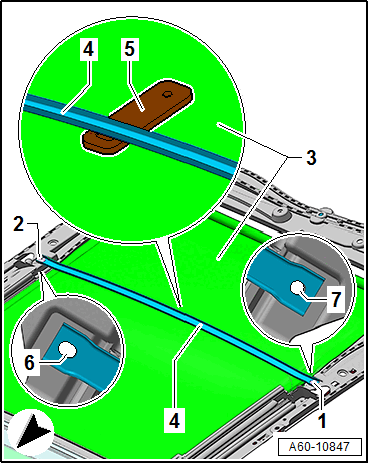

-- Position the cross bar -4- on the sunroof frame.
- The side with the oblong hole -6- must be located on the right side.
-- Tighten the left bolt -1- on the cross bar -4-.
-- Insert the :3371 -5- centered between the cross bar -4- and the sunroof shade -3-.
- The distance between the cross bar -4- and the sunroof shade -3- must be 3.5 mm before tightening the right bolt -2-.
-- Tighten the right bolt -2- on the cross bar -4-.

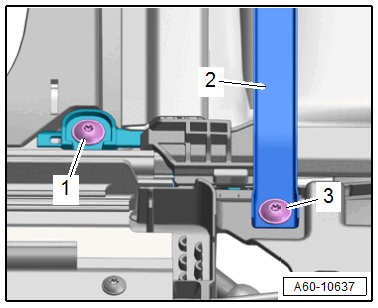

-- Tighten the bolt -1-.
If the axle in the sunroof shade shaft is unrolled, it is possible to re-establish the pretension by doing the following.
-- Turn the axle of the unrolled sunroof shade until it is possible to feel a slight resistance.
-- Then turn the axle with the end piece 12 turns while holding the shaft secure, and then use the :T40011 to secure it from unrolling.
Continuation:
-- Insert the sunroof shade axle into the guide on the sunroof frame.
-- Remove the :T40011 from the shaft just after inserting it into the sunroof frame.

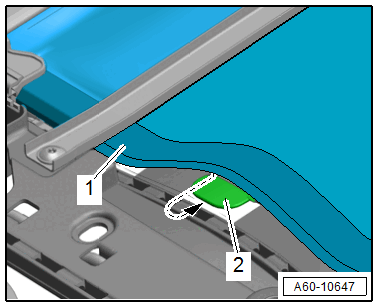

-- Make sure that the side sunroof shade reinforcement -1- is engaged in the guide tab -2- for the frame section -arrow-.
Further installation is performed in reverse order of removal, while noting the following:
-- Perform an adaptation. Refer to SUNROOF SHADE MOTOR -V260-, ADAPTING .
