Sunroof Shade Motor -V260-, Removing And Installing, A5: Removing

-- Position the front seat backrests all the way toward the rear.

-- Remove the headliner and place on the seats. Refer to HEADLINER, REMOVING AND INSTALLING .

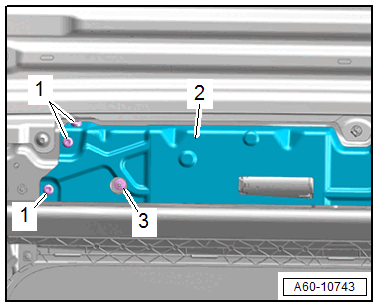

-- Sportback: remove the nuts -3- and bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -2-.

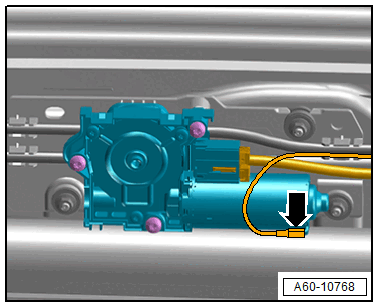

-- If equipped, disconnect the ground wire -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

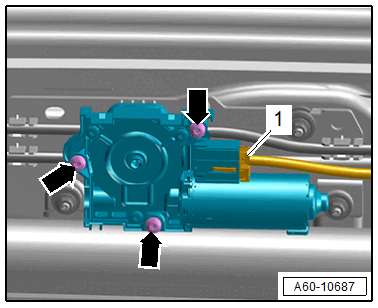

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and the sunroof shade motor.
