Sunroof Motor -V1-, Removing And Installing, A5: Removing

• The sliding sunroof glass panel is closed.

-- Switch off the ignition.

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

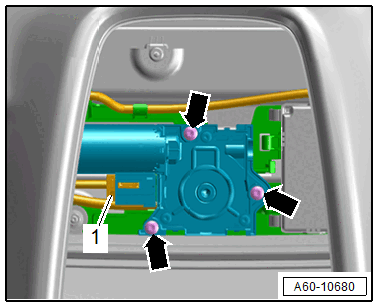

-- Remove the bolts -arrows- and the Sunroof Motor -V1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1-.
