Sunroof Frame, Removing And Installing, A4 AVANT: Removing

-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

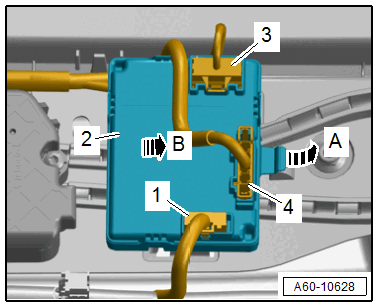

-- Disconnect the connector -1- from the Power Sunroof Control Module -J245-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front and rear water drain hoses from the sunroof frame. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .

-- Mark the installation position of the sunroof frame to the roof for reinstallation.

• Before removing the nuts, both technicians must hold the sunroof frame at the front and back.

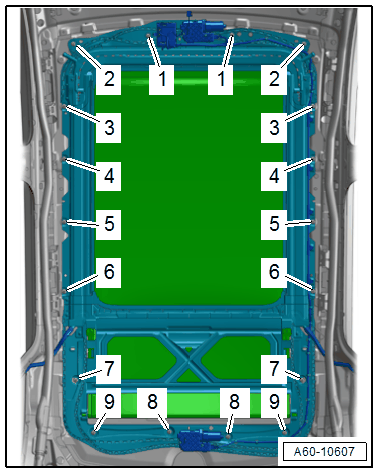

-- Remove the nuts -1, 2, 4, 5, 6, 8 and 9-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -3 and 7- and then remove the sunroof frame to the rear lid.
