Rubber Trim, Removing And Installing, A5: Removing

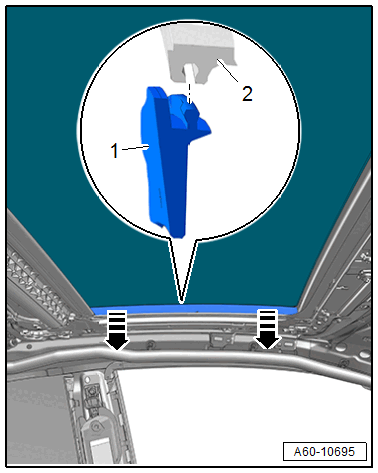

-- Open the glass panel far enough until it is lifted at the front and rear.

-- Remove the rubber trim -1- downward -arrows-.

GWWA60-10695Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
