Overview - Wind Deflector, A4 Sedan

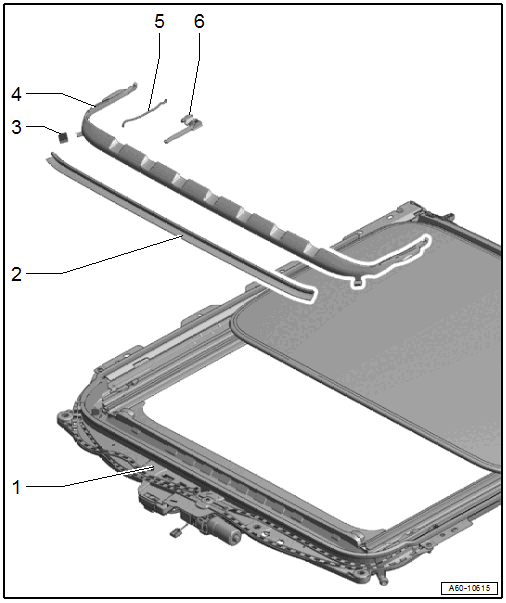

Fig 1: Exploded View Of Wind Deflector, A4 Sedan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sunroof Frame
Sealing Lip
Stop Buffer
Wind Deflector
- Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, A4 SEDAN .
Spring
- For wind deflector
- Removing and Installing. Refer to WIND DEFLECTOR SPRING, REMOVING AND INSTALLING .
Bearing
- For wind deflector
- Removing and Installing. Refer to WIND DEFLECTOR BEARING, REMOVING AND INSTALLING, A4 SEDAN .
