Glass Panel, Removing And Installing, Rear, A4 AVANT And Market-Specific Version: Removing

CAUTION:

- Move the slotted guide rail guide only when the glass panel is installed.

-- Open the front glass panel.

-- Remove the inner seal in the rear area from the roof frame toward the inside.

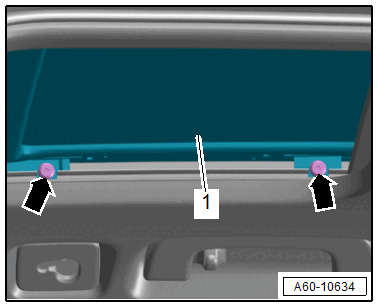

-- Remove the left and right bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift out the rear glass panel -1-.
