Glass Panel, Removing And Installing, A4 Sedan: Removing

CAUTION:

- Move the slotted guide rail guide only when the glass panel is installed.

-- Slide the sun shade all the way to the rear.

-- Tilt open the glass panel.

-- Remove the left and right boot. Refer to BOOT, REMOVING AND INSTALLING .

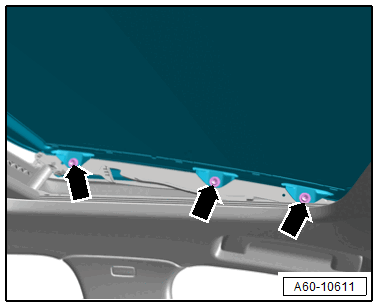

-- Remove the left and right bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the glass panel upward.
