Hydraulic System, Filling And Bleeding: Bleeding
TIP:
Hydraulic system is self-bleeding. The system is bled after opening and closing the convertible top several times.

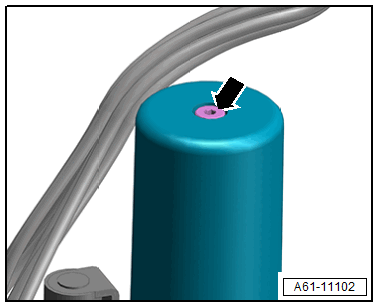

-- Insert the old oil filler plug with a seal and tighten to the tightening specification.
-- Start the engine.
-- Open the convertible top with the electro-hydraulic actuator five times and stop in different positions.
- The convertible top must move smoothly and without jerking.

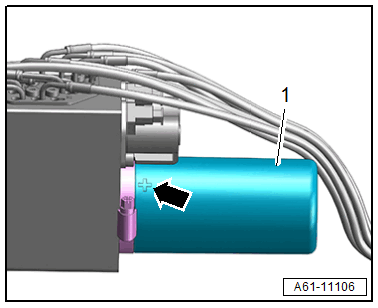

-- Check the oil level in the reservoir -1- with the convertible top opened and the convertible top compartment cover closed.
- The oil level must be within the "+" - marking -arrow-. At the same time the hydraulic pump must be horizontal.
-- Replace the oil filler plug for the reservoir.
