Switch On The Hydraulic Cylinders

Courtesy of AUDI OF AMERICA, LLC

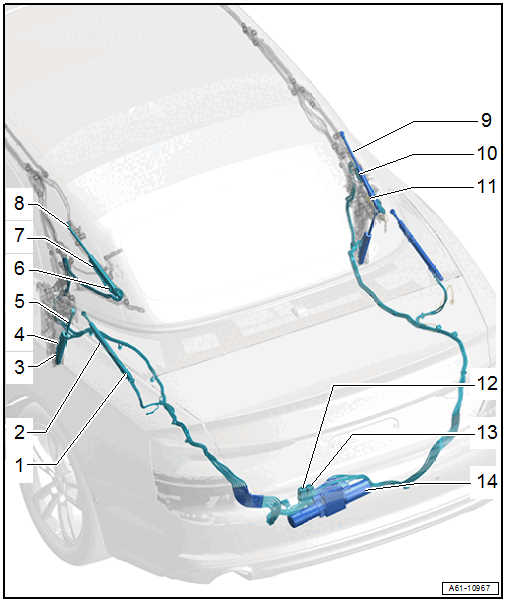

Hydraulic Cylinder for Convertible Top Compartment Cover
Convertible Top Compartment -Open- Switch -F407-
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT -OPEN- SWITCH -F407-, REMOVING AND INSTALLING .
Convertible Top Open Position Switch -F171-
- Removing and Installing. Refer to CONVERTIBLE TOP OPEN POSITION SWITCH -F171- /CONVERTIBLE TOP FRONT CLOSED POSITION SWITCH -F202-, REMOVING AND INSTALLING .
Convertible Top Front Closed Position Switch -F202-
- Removing and Installing. Refer to CONVERTIBLE TOP OPEN POSITION SWITCH -F171- /CONVERTIBLE TOP FRONT CLOSED POSITION SWITCH -F202-, REMOVING AND INSTALLING .
Convertible Top Drive Hydraulic Cylinder
- Left
Upper Tensioning Bow Switch -F408-
- Removing and Installing. Refer to UPPER TENSIONING BOW SWITCH - F408- /LEFT TENSIONING BOW LOWERED POSITION SWITCH -F419-, REMOVING AND INSTALLING .
Left Tensioning Bow Lowered Position Switch -F419-
- Removing and Installing. Refer to UPPER TENSIONING BOW SWITCH - F408- /LEFT TENSIONING BOW LOWERED POSITION SWITCH -F419-, REMOVING AND INSTALLING .
Tensioning Bracket Hydraulic Cylinder
- Left
Tensioning Bracket Hydraulic Cylinder
- Right
Right Tensioning Bow Lowered Position Switch -F420-
- Removing and Installing. Refer to INTERMEDIATE POSITION BRACKET SWITCH -F518- /RIGHT TENSIONING BOW LOWERED POSITION SWITCH -F420-, REMOVING AND INSTALLING .
Intermediate Position Bracket Switch -F518-
- Removing and Installing. Refer to INTERMEDIATE POSITION BRACKET SWITCH -F518- /RIGHT TENSIONING BOW LOWERED POSITION SWITCH -F420-, REMOVING AND INSTALLING .
Convertible Top Hydraulic Pump Relay -J321-
- Refer To the appropriate Wiring Diagram(s).
Convertible Top Hydraulic Pump Relay 2 -J588-
- Refer to the appropriate Wiring Diagram(s).
Convertible Top Hydraulic Pump -V118-
- With Power Convertible Top Valve 1 -N272-, Power Convertible Top Valve 2 -N341-, Power Convertible Top Valve 3 -N342-
