Rear Convertible Top Seal, Removing And Installing: Installing
Install in reverse order of removal and Note The Following:

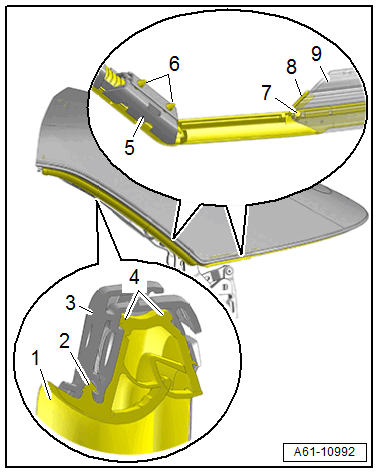

-- Insert the guide pin -7- and convertible top seal cover -8- in the mount on the tensioning bracket -9-.
-- Insert the convertible top seal guide retaining studs -6- into the retaining strip mount -5- and press the convertible top seal -1- evenly into the retaining strip.
- The convertible top seal guides -2 and 4- must be seated correctly in the mounts on the retaining strip -3-.
