Folding Backrest Latch Trim, Removing And Installing: Removing

-- Fold the folding backrest forward.

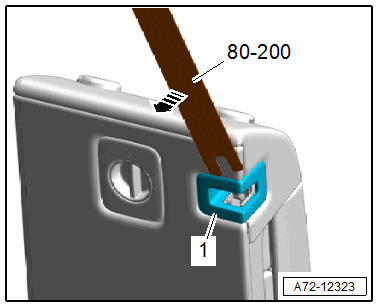

-- Remove the trim -1- using the :80-200 -arrow-.

GWWA72-12323

Courtesy of AUDI OF AMERICA, LLC
