Center Bracket, Removing And Installing: Removing

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Fold the folding backrests forward.

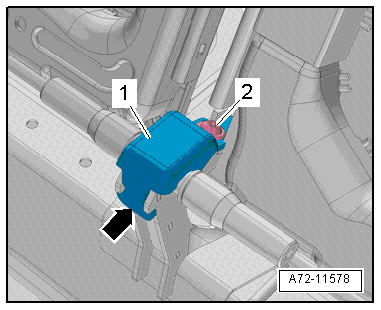

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove the securing bracket -1- from the center support -arrow-.

NOTE:

Disengaging the rear seat backrest from the mountings will be enough.

Courtesy of AUDI OF AMERICA, LLC

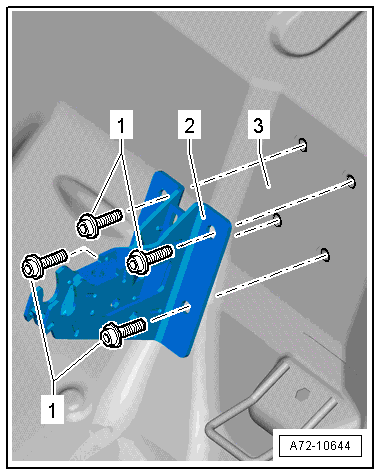

-- Remove the bolts -1-.

-- Remove the center support -2- from the underbody -3-.
