Side Spoiler, Removing And Installing: Installing
Install in reverse order of removal and Note The Following:
- The vehicle and the spoiler must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
Installation Preparation For Reinstallation:
-- Remove the adhesive residue on the spoiler.
-- Clean the plastic side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.
-- Apply double-sided tape to the same location. Refer to Parts Information.
Continuation:
-- Remove Adhesive Residue From The Body.
-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.

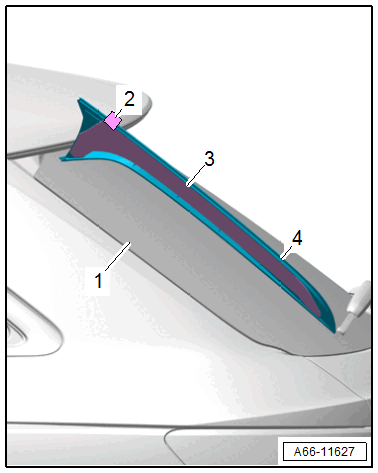

-- Apply Glass Primer: D 177 500 A1 -item 1- on the glass-side adhesive surface -2- using the Applicator: D 009 500 25 -item 3- and let it dry.
- Apply the adhesive tape, so that the side with the blue protective film points to the spoiler.
-- Fold back the ends of the protective film, or attach a pulling aid -2- to the protective film.
-- Align the side spoiler -4- on the rear window -1- while paying attention to the adjustment dimension. Refer to ADJUSTMENT DIMENSION, A4 AVANT .
-- Remove the protective film from the pulling aid and from the adhesive tape -3-.
-- Push the entire length of the side spoiler on using the :3356 .
- Vehicle resting time is at least 30 minutes at room temperature.
