Fender Trim, Removing And Installing: Installing

Install in reverse order of removal and Note The Following:

• The vehicle and the trim must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

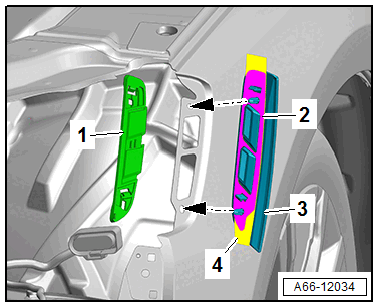

-- Remove the protective film -4- from the adhesive tape -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the fender trim -3- under the pin on the fender -arrows-.

-- Push the fender trim on the fender and on the bracket -1- until it engages.

• Vehicle Resting Time Is At Least 30 Minutes At Room Temperature.
