Hood Heat Shield, Removing And Installing: Installing

Install in reverse order of removal and Note The Following:

• The vehicle and the heat shield must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

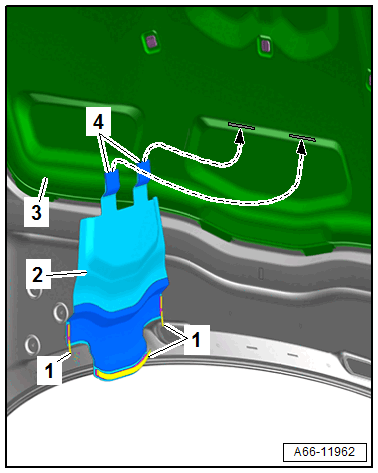

-- Remove the protective film -1- from the adhesive tape.

Courtesy of AUDI OF AMERICA, LLC

-- Push the tabs -4- in the specified cut-out on the insulation -3- -arrows-.

-- Position the heat shield -2- on the body contour and press on.

• Vehicle resting time is at least 30 minutes at room temperature.

INSTALLING

Install In Reverse Order Of Removal.
