Rear Lid Seal, Removing And Installing, A4 AVANT: Installing

Install in reverse order of removal and Note The Following:

-- Position the rear lid seal on the body flange.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

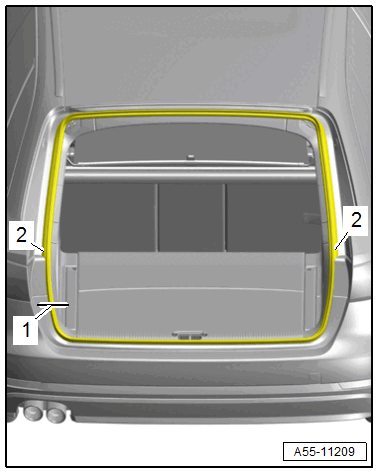

• The butt joint -1- for the rear lid seal must face the left toward the bumper cover.
• The cover lips -2- must be aligned evenly with the tail lamps.

-- Press on the entire length of the rear lid seal.
