Rear Lid Opener Control Module -J938-, EMOVING And Installing: Removing

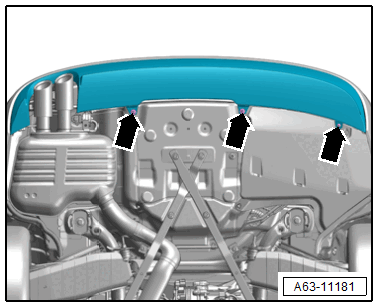

-- Remove the nuts/bolt -arrows- on the lower section of the bumper cover.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

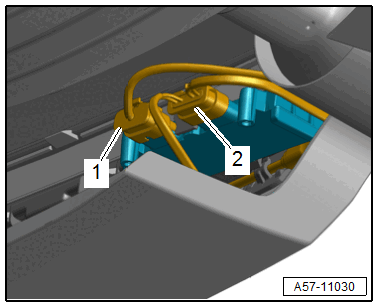

-- Disconnect the connectors -1 and 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

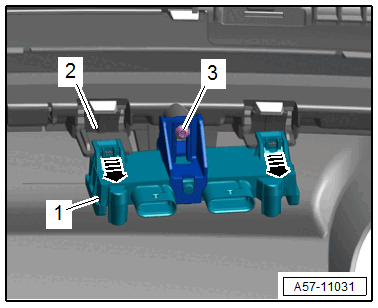

-- Remove the control module -1- from the brackets on the bumper cover -2- -arrows-.

-- If the control module is replaced, release the tab -3- -arrow- and disengage the bracket -2- from the control module -1-.

Fig 1: Opening Retainer -3- -Arrow- And Disengage Bracket -2- From Control Module -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
