Overview - Engine Compartment Lid

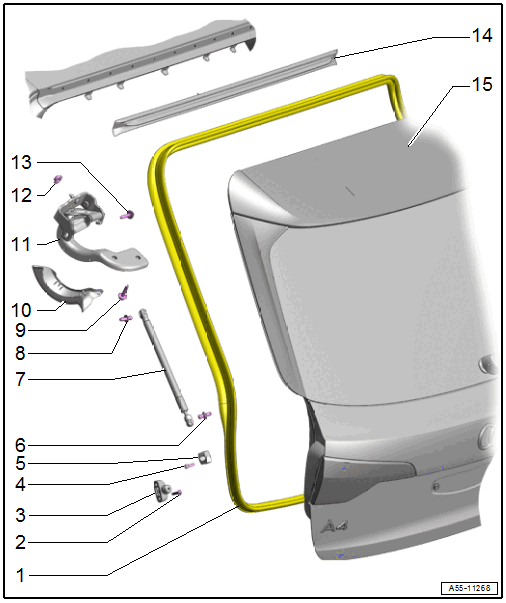

Fig 1: Exploded View Of Engine Compartment Lid

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid Seal
- Removing and Installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING, A4 AVANT .
Bolt
- 8 Nm
- Quantity: 2
Adjusting Buffer
- Removing and Installing. Refer to ADJUSTING BUFFER, REMOVING AND INSTALLING, A4 AVANT AND A5 SPORTBACK .
- Adjusting. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .
Bolt
- 8 Nm
Stop
- For the adjusting buffer
- Removing and Installing. Refer to ADJUSTING BUFFER STOP, REMOVING AND INSTALLING, A4 AVANT AND A5 SPORTBACK .
Ball Pin
- 21 Nm
Gas-Filled Strut
- Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Venting. Refer to GAS-FILLED STRUT, VENTING .
Ball Pin
- 21 Nm
Bolt
- 30 Nm
- Quantity: 2
Rear Lid Hinge Trim Panel
- Removing and Installing. Refer to OVERVIEW - REAR LID LOWER TRIM PANEL .
Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A4 AVANT .
Nut
- 21 Nm
Bolt
- 21 Nm
Roof Frame Cover
- Removing and Installing. Refer to ROOF FRAME COVER, REMOVING AND INSTALLING, A4 AVANT .
Rear Lid
- Equipment version: with vibration damper. Refer to -item )OVERVIEW - REAR LID, A5 SPORTBACK - Balance Weight
- Removing and Installing. Refer to REAR LID, REMOVING AND INSTALLING, A4 AVANT .
- Adjusting. Refer to REAR LID, ADJUSTING .
