Overview - Power Rear Lid Opener

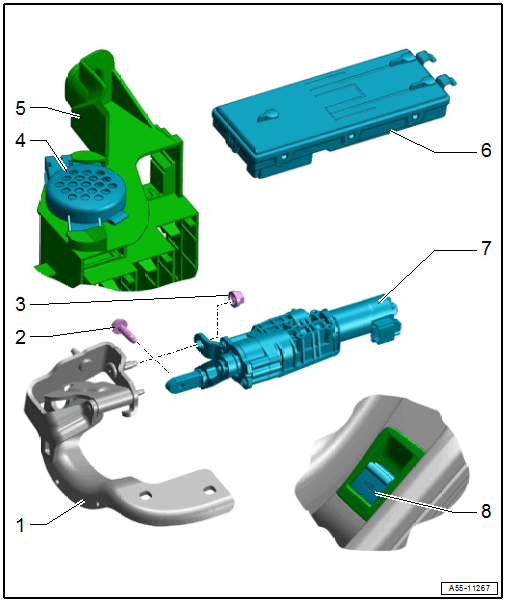

Fig 1: Exploded View Of Power Rear Lid Opener

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING, A4 AVANT .
Bolt
- 20 Nm + 90°
- Replace after removing.
Nut
- 30 Nm
Rear Lid Warning Buzzer -H32-
- Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
Rear Lid Control Module -J605-
- Removing and Installing. Refer to REAR LID CONTROL MODULE -J605-, EMOVING AND INSTALLING, A4 AVANT .
Rear Lid Motor
- On the left: Rear Lid Motor 1 -V444- ; on the right: Rear Lid Motor 2 -V445-
- Removing and Installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, EMOVING AND INSTALLING, A4 AVANT .
Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to REAR LID REMOTE RELEASE BUTTON -E233-, REMOVING AND INSTALLING / RELEASE BUTTON IN REAR LID HANDLE -E234-, REMOVING AND INSTALLING .
