Height, Adjusting Using Adjusting Buffer

• Adjustment dimensions. Refer to ADJUSTMENT DIMENSIONS .

Special Tools And Workshop Equipment Required

• Gauge - Gap Adjustment:3371

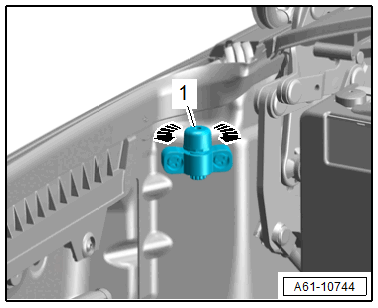

-- Turn the adjusting buffer -1- -arrows- until the closed convertible top compartment cover makes contact.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The convertible top compartment cover must lie on the cover side stop with light pretension.
• Make sure the convertible top compartment cover closes without any play by pushing or pulling on the sides.

-- Repeat the adjustment if necessary.
