Bumper Cover Trim, Removing And Installing, RS4 And RS5: Removing

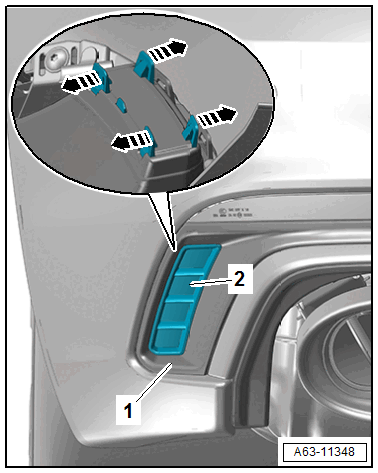

-- Release the catches -arrows- and remove the trim -2- from the bumper cover lower section -1-.

GWWA63-11348

Courtesy of AUDI OF AMERICA, LLC
