Bumper Cover Trim, Removing And Installing, A5 S Line, S5: Removing

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

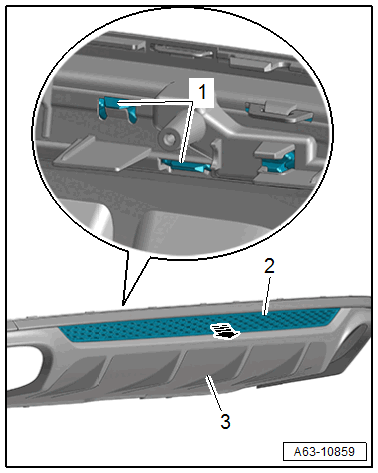

-- Release the retainers -1- and remove the trim -2- from the bumper cover -3- -arrow-.

GWWA63-10859Courtesy of AUDI OF AMERICA, LLC
