Bumper Cover Trim, Removing And Installing, A4 S Line: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the reflector. Refer to REFLECTOR, REMOVING AND INSTALLING .

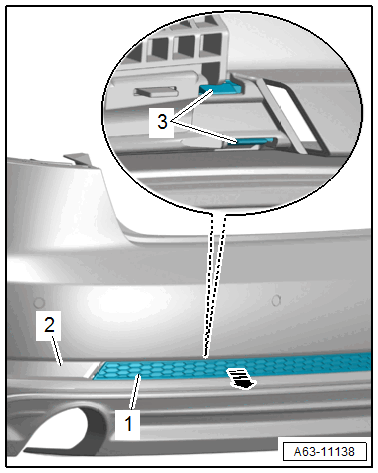

-- Release the retainers -3- and remove the trim -1- from the bumper cover -2- -arrow-.

GWWA63-11138Courtesy of AUDI OF AMERICA, LLC
