Bumper Cover Trim Molding, Removing And Installing, S5: Removing

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

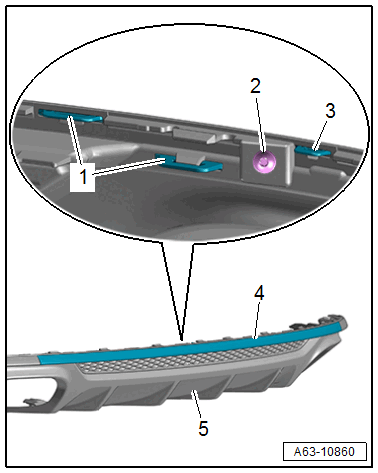

-- Remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -1 and 3- and remove the center trim molding -4- from the bumper cover -5-.

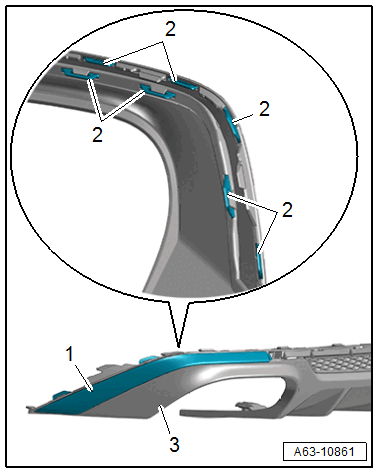

-- Release the catches -2- and side trim molding -1- from the bumper cover -3-.

Courtesy of AUDI OF AMERICA, LLC
