Bumper Cover Lower Section, Removing And Installing: Removing
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
-- Release the retainers -arrows- on the movable parts -2 and 3- of the end plate -1- and fold up.
-- Remove the reflector. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 ALLROAD .

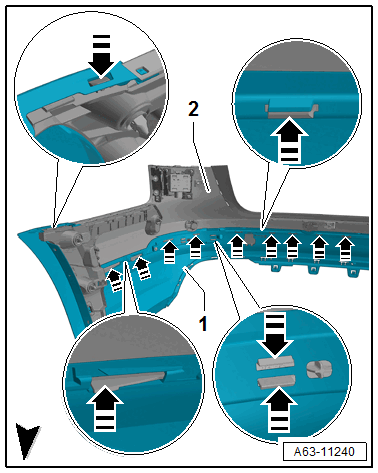

-- Release the retainers -arrows- and remove the bumper cover lower section -1- from the bumper cover upper section -2-.
