Bumper Cover Lower Section, Removing And Installing, RS4 And RS5: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped, remove the rear lid opener control module. Refer to REAR LID OPENER CONTROL MODULE -J938-, REMOVING AND INSTALLING .

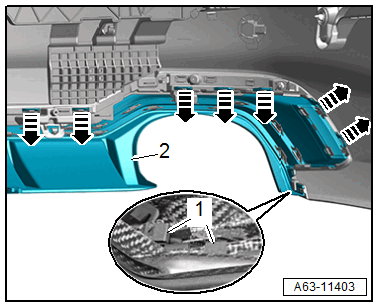

-- Pry out the clamps -1-.

GWWA63-11403Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows- and remove the lower section -2- from the bumper cover.
