Bumper Cover Lower Section, Removing And Installing, A4 And A5: Removing

-- Remove the nuts -1- and bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear underbody trim panel. Refer to SIDE UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

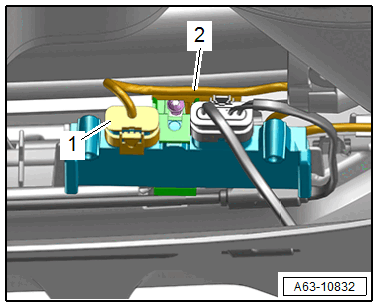

-- Disconnect the connector -1-, if equipped.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -2-.

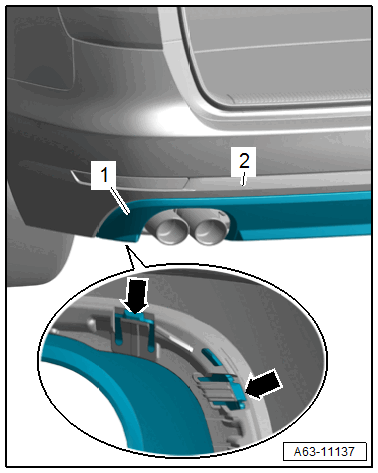

-- Release the retainers -arrows- and remove the lower section -1- from the bumper cover -2-.

Courtesy of AUDI OF AMERICA, LLC
