Impact Guard, Removing And Installing: Removing
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

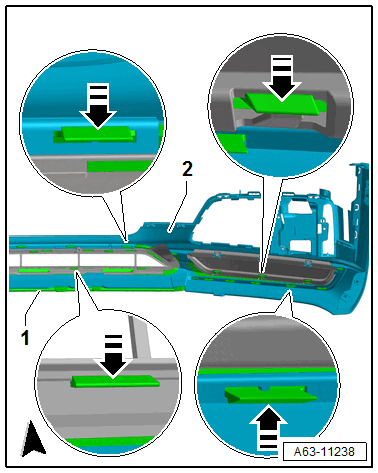

-- Release the retainers -arrows- and remove the impact guard -1- from the front spoiler -2-.
