Center Air Intake Grille, Removing And Installing, A5, RS4 And RS5: Removing
-- A5: remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
--RS4 and RS5: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

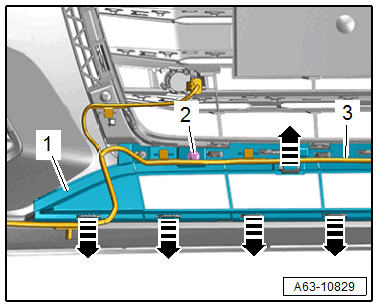

-- Free up the wiring harness -3-.
-- Remove the bolts -2-.
-- Release the retainers -arrows- and remove the air intake grille -1- from the bumper cover.
