Center Air Intake Grille, Removing And Installing, A5 S Line, S5: Removing

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

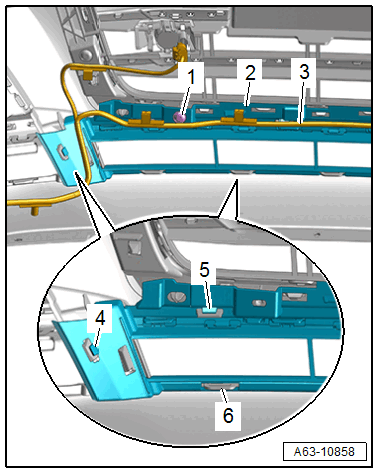

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1-.

-- Release the retainers -4 to 6- and remove the air intake grille -2- from the bumper cover.
