Center Air Intake Grille, Removing And Installing, A4: Removing

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .

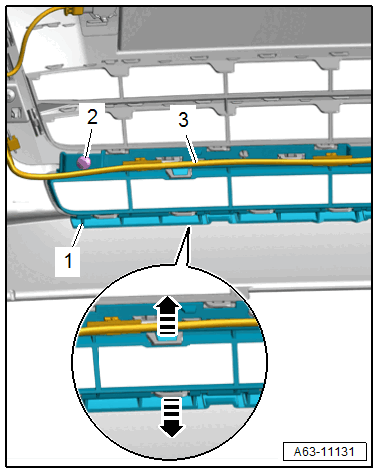

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Release the retainers -arrows- and remove the air intake grille -1- from the bumper cover.
