Center Air Intake Grille, Removing And Installing, A4 ALLROAD: Removing
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING .
-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, A4 ALLROAD .

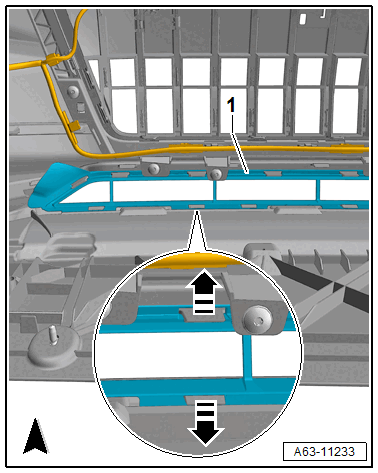

-- Release the retainers -arrows- and remove the air intake grille -1- from the bumper cover.
