Air Routing, Removing And Installing, A4, S Line: Removing

-- Remove the wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

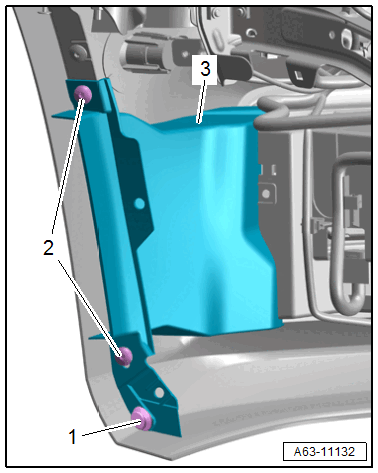

-- Remove the bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivet -1-.

-- Remove the air duct -3- to the rear.
