Valet Parking Lock Button -E536-, Removing And Installing: Removing

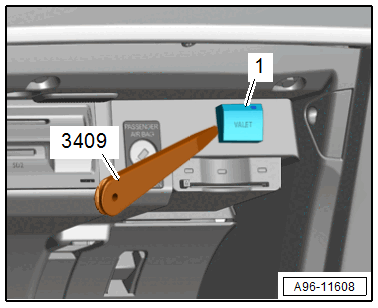

GWWA96-11608Courtesy of AUDI OF AMERICA, LLC

-- Pry out the valet parking lock button -1- with the :3409  .

-- Disconnect the connector and remove the valet parking lock button.
