Rear Lid Warning Buzzer -H32-, Removing And Installing: Removing

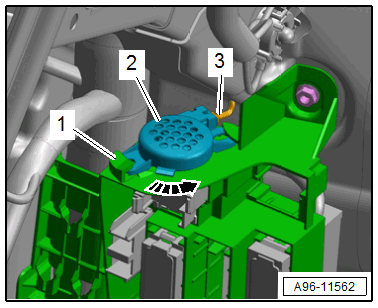

GWWA96-11562Courtesy of AUDI OF AMERICA, LLC

-- Open the cover for the left luggage compartment side trim panel.

-- Tilt the warning buzzer -2- out of the mount -1- -arrow- and remove it.

-- Disconnect the connector -3-.
