Relay And Fuse Panel 1 -SR1-, Removing And Installing: Removing

-- Remove the lower cover on the driver side. Refer to INSTRUMENT PANEL .

-- Remove the left front sill panel. Refer to OVERVIEW - SILL PANEL .

-- Disconnect The Ground Cable From The Battery When The Ignition Is Switched Off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Push the carpet in the relay and fuse panel 1 area to the side as far as possible.

-- Disconnect the connectors -2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the cable tie -1, 4-.

-- Free up the wiring harness -6-.

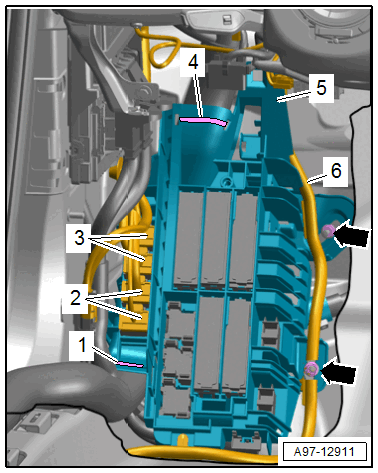

-- Remove the nuts -arrows-.

-- Remove the relay and fuse panel 1 -item 5- from the threaded pins and remove from the body toward the inside.

-- Release the clip -arrow-, push the fuse panel -item 2- out toward the rear and disengage it from relay and fuse panel 1 -item 1-.

-- Open the clip and remove the auxiliary fuse panel -2-.

-- Release the clips -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Open the clips -arrows- and press the relay panel -3- toward the rear and out of the bracket -4-.

-- Open the clip -1- and remove the connector terminal -2- from the bracket.

-- Remove relay and fuse panel 1.
