TV Antenna Amplifier 2 -R83-, Removing And Installing, Sedan: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

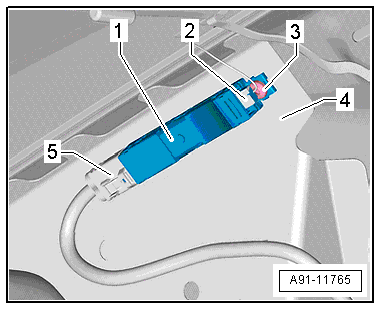

-- Release and disconnect the connectors -2 and 5- from the TV Antenna Amplifier 2 -R83- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -3- and remove the TV Antenna Amplifier 2 -R83- -1- from the D-pillar -4-.
