CUPHOLDER, Removing And Installing: Removing

-- Remove the center console insert (refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING ) and place it on a soft surface.

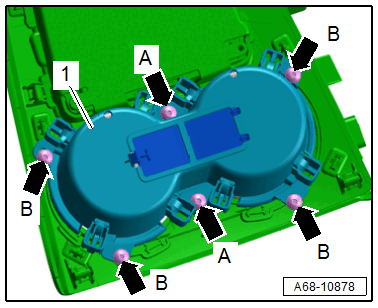

-- Remove the screws -A and B arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cupholder -1-.
