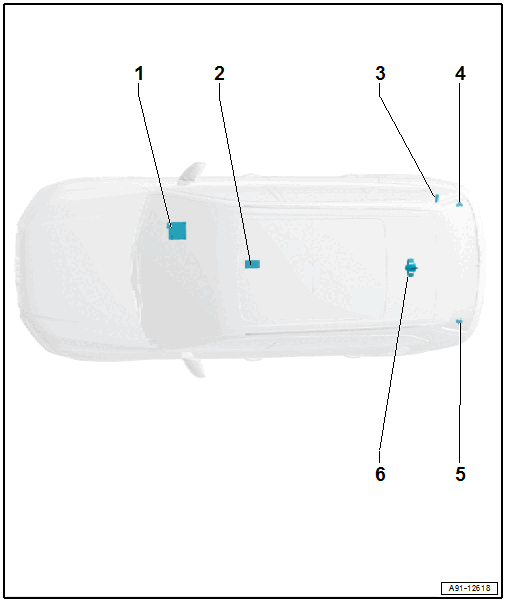

Overview For AUDI Connect, LTE Antennas
- Information Electronics Control Module 1 -J794-
- Not Installed
- Not Installed
- Not Installed
- Only for IW0/IW3
Right Bumper Antenna
- LTE Antenna 2 -R306-, only for IW1
- Only for IW0/IW3
- Left Bumper Antenna
- LTE Antenna 2 -R306-, only for IW0/IW3
- LTE Antenna 1 -R297-, only for EL3
- LTE Antenna 1 -R297-
- In the Roof Antenna - R216-, only on IW0/IW3
Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
Fault finding is performed using the "Guided Fault Finding" on the Vehicle Diagnostic Tester.
Repairing antenna wires. Refer to GENERAL REPAIR INFORMATION .
Notes on Bluetooth® Technology
A standardized radio connection is used for data transfer between the Information Electronics Control Module 1 -J794- and Cellular Telephone -R54- - Bluetooth® technology. The range of the radio connection is approximately 10 m (11 yards).
Notes on MOST Bus
The optical data bus "MOST Bus" is used in addition to the CAN Bus.
A fiber-optic cable is used. Fiber optic cables are routed inside corrugated tubes for protection.
Replace the complete fiber-optic cable if possible.
The front surface of the connectors must not be contaminated.
If disconnecting the connectors: Attach the :VAS6223/9 .
When routing fiber-optic cables, make sure not to go below the minimum bending radius of 25 mm. Do not crush or kink the fiber-optic cables.
Repairing fiber-optic cables. Refer to GENERAL REPAIR INFORMATION .
