TV Antenna Amplifier 1 -R82-, Removing And Installing, AVANT: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING / REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

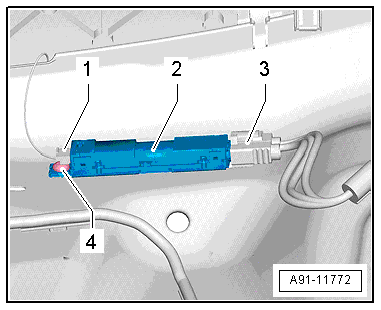

-- Release and disconnect the connectors -1 and 3- from the TV Antenna Amplifier 1 -R82- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -4- and remove the TV Antenna Amplifier 1 -R82- -2- from the rear lid.
