Special Tools

Special Tools And Workshop Equipment Required

• Torque Wrench 1783 -2-10 Nm :VAG1783
  Fig 1: Identifying Torque Wrench

  Courtesy of AUDI OF AMERICA, LLC
• Brake Pedal Actuator:VAG1869/2  .
  Fig 2: Identifying Brake Pedal Actuator

  Courtesy of AUDI OF AMERICA, LLC
• Setting Device - Basic Set:VAS6430/1  or Setting Device - Basic Set:VAS6430/1A

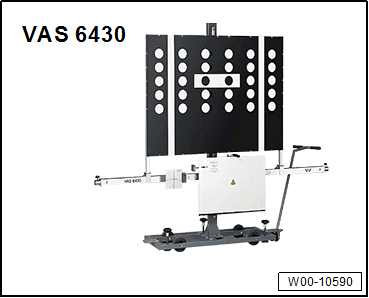

  Fig 3: Identifying Setting Device VAS 6430

  Courtesy of AUDI OF AMERICA, LLC
• ACC Reflector Mirror - Audi:VAS6430/3
• Steering Wheel Scales:VAS6458

  Courtesy of AUDI OF AMERICA, LLC

• Not illustrated:
• Wheel Alignment Computer released by VW/Audi
• John Bean V3D Aligner:VAS6331
• Setting Device - Basic Set:VAS6430
• ACC Reflector Mirror:VAS6430/3
• Camera:VAS6331/1
• Screwdriver with T-bar:VAS272001
