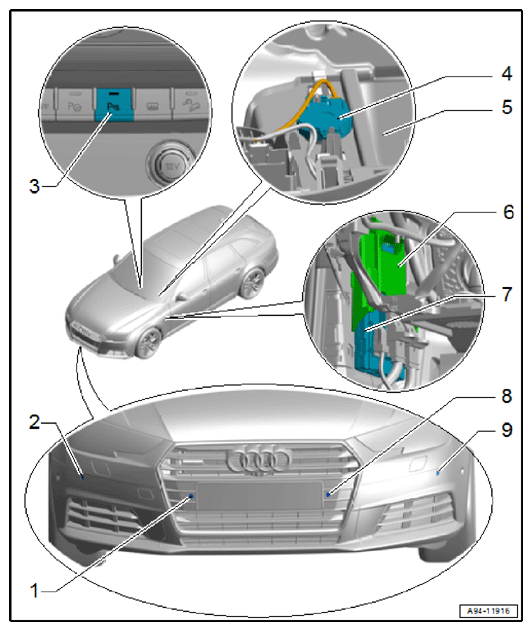

11.1.1 Overview - Front Parking Aid

Right Front Center Parking Aid Sensor - G253-
- Removing and Installing. Refer to 11.4 Front Parking Aid Sensor, Removing and Installing
Right Front Parking Aid Sensor - G252-
- Removing and Installing. Refer to 11.4 Front Parking Aid Sensor, Removing and Installing
Parking Aid Button - E266-
- Removing and Installing. Refer to Buttons in Instrument Panel, Removing and Installing
Front Parking Aid Warning Buzzer - H22-
- Removing and Installing. Refer to 11.2 Front Parking Aid Warning Buzzer - H22-, Removing and Installing
Driver Side Lower Cover
Bracket
- For vehicle electrical system control module
Vehicle Electrical System Control Module - J519-
- Component Location Overview. Refer to Component Location Overview - Control Modules
Left Front Center Parking Aid Sensor - G254-
- Removing and Installing. Refer to 11.4 Front Parking Aid Sensor, Removing and Installing
Left Front Parking Aid Sensor - G255-
- Removing and Installing. Refer to 11.4 Front Parking Aid Sensor, Removing and Installing
