Solar Battery Maintainer :Vas6102A Device Description
Special Tools And Workshop Equipment Required
- Solar Battery Maintainer :VAS6102A
The :VAS6102A supports the vehicle electrical system and prevents the Battery -A- from self-discharging.
The :VAS6102A reaches a maximum voltage of 14.3 V and a maximum charge current of 255 mA.
All chargeable lead- and lead gel batteries can be charged with the :VAS6102A .
The :VAS6102A is connected to the diagnostic connection in the vehicle.
The :VAS6102A has a green LED integrated inside the frame which displays the function being performed. The brighter the LED, the higher the charging current.
It is not possible to overcharge the Battery -A- due to the integrated electronics.

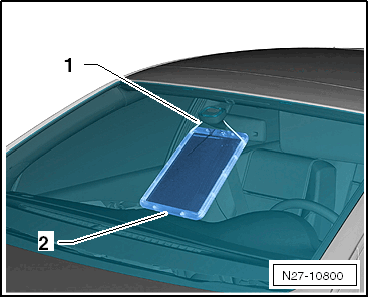

The :VAS6102A is secured on the interior rearview mirror -1-. The bottom rests on the instrument panel -2-.
The :VAS6102A must not touch the instrument panel completely. Only the bottom edge may be used for support. If it touches completely, the color of the instrument panel could change.
